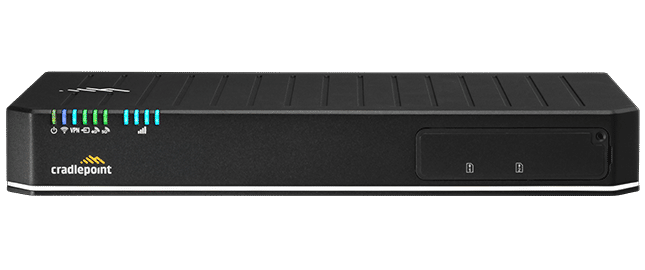

E3000 Series

Purpose-built
scalable 5G router

Cradlepoint CBA550
Datasheet

The Cradlepoint NetCloud Enterprise Branch Service with E3000 Series Router is suited for fixed branch, healthcare, financial services and retail locations, ideally when combined with need for security services at scale with performance. The all-in-one form factor includes fullfeatured routing, security, switching with PoE ports and Wi-Fi, making it easy to connect branches to the Internet and critical applications without the need for extra hardware or complicated configurations. And the embedded LTE modem means that connectivity is always available from day 1 without waiting for a wired connection.

Connections

– 5G LTE/ Cellular
– Wi-Fi
– Ethernet
– GPS
– USB
– PoE

Capabilities

– Category 18 modem 1.2 gbps cap
– Dual-radio, dual-band, concurrent operation (2.4/5 GHz)
– (9) GbE LAN/WAN switchable
– (1) 2.5 GbE LAN/WAN switchable
– (1) 10 GbE
– (4) Power over ethernet Type 3/4
– Dual-modem capable

Features

– Take advantage of embedded Cat 18 LTE modem for fast
day-1 or primary connectivity
– Terminate a primary wired broadband link with LTE as
failover for highly resilient hybrid connectivity
– Enable larger branch locations especially when combined
with comprehensive security and application analytic ability
– Integrate into your existing network with standards-based dynamic routing and VPN tunnel support
– Define policies through centralized, cloud-based
management for easy deployment at scale
– Add a second cellular modem for dual LTE connectivity
– Add 5G with modular modem capability

In the Box

– E3000 Modem
– Power Supply, 54 VDC 3.34A, 2M, North America
– (4) Cellular Antenna, Gray, 600 MHz – 6 GHz, SMA
– (4) Wi-Fi Antenna, Gray, Dual-band 2.4/5 GHz, RPSMA
– Antenna alignment tool
– Wall mount screw pack
– Rubber feet for desktop mounting

Buy Now

E3000
Category 18 Modem
from $2,023.00

Recommended Accessories

MC400 modular modem.png



MC400 Modular
Modem

$599.99

Parsec Husky
9-in-1 Antenna
$509.00
Indoor Outdoor Patch.png

Indoor/Outdoor
Panel Patch

$149.99

This image has an empty alt attribute; its file name is dual-band-omnidirectional-antenna.png

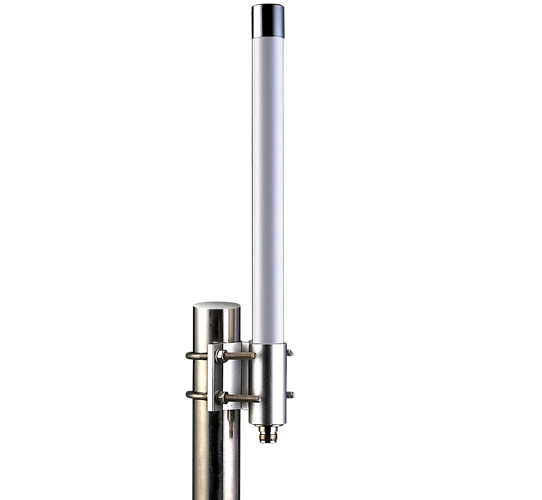

Omni-directional Dual Band Antenna
$149.99
