AirLink®  LX60

Indoor & Outdoor
Dual-Ethernet LTE Router

The AirLink® LX60 is the industry’s first LTE and LTE-M / NB-IoT router for commercial and enterprise applications. The LX60 offers “out-of-the box” connectivity that is simple to install, and easy to manage providing your equipment or business with a primary or backup LTE connection. The LX60 provides purpose-built, secure, reliable, managed LTE networking in IoT applications such as Building Automation, Digital Signage, Taxis, ATMs, Kiosks and Point-of-Sale terminals.

The LX60 is designed to meet the environmental and performance requirements of a diverse range of equipment in building, industrial and mobile locations, delivering superior reliability and uninterrupted operation in fixed, indoor and protected outdoor environments.

LX60 is also available with optional Wi-Fi + GNSS and rated for shock, vibration and vehicle power environments meeting the demands of light commercial and taxis requiring connectivity.

LX60
LX60 by Sierra Wireless

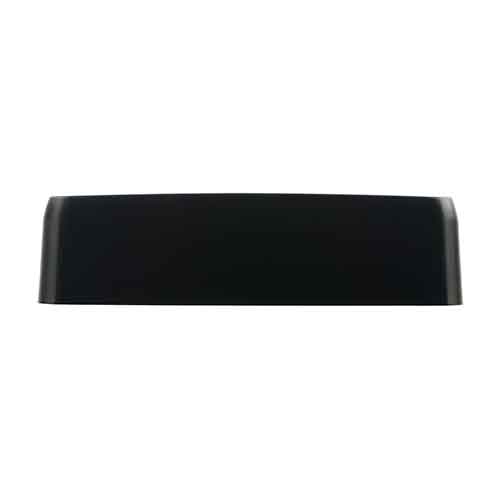

LX60 Front

Technology

– LTE Cat 4 or Cat M1/NB1
– Wi-Fi and Active GPS (Optional)

Capabilities

– Up to 150 Mbps down/ 50 Mbps up (Cat 4 model)
– Dual Band 2.4/5GHz Wi-Fi 802.11 b/g/n/ac (Wave2 Client Mode)

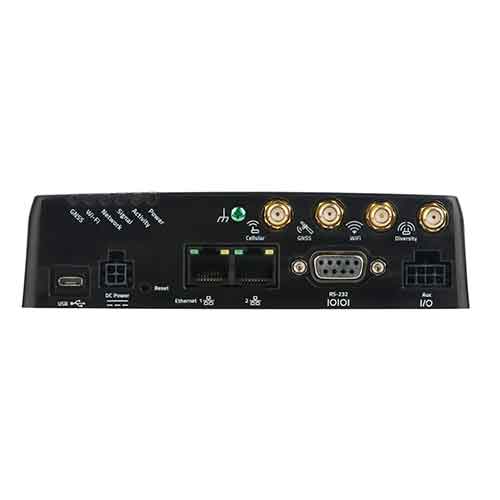

– 2 Gigabit RJ-45 Ethernet ports
– RS-232 serial port (DB-9)
– 3 SMA antenna connectors (cellular, diversity, GNSS)
– 1 RP SMA antenna connector (1×1 MIMO Wi-Fi)
– Active GNSS antenna support
– Aux Port (RS-485/GPIO)

Features

– Out-of-Box LTE Connectivity: Add LTE connectivity to your existing equipment
– Enables edge processing with optional secure linux-based embedded application framework (ALEOS Application Framework)
– Dual Ethernet, RS232 & RS485 and multiple I/O to connect to a wide variety of field equipment
– LTE and LTE-M/NB-IoT variants for global deployments, and extended coverage and depth (in-building and below ground) to reach challenging locations
– Integrated 7-36VDC industrial grade power supply and –30C to +65C temperature range to provide superior reliability without need for additional power conditioning or adapters
– ALMS Cloud or AMM On-Premises Management single-pane device management across all devices

In the Box

– LX60
– DC Power Cable
– Quick Start Guide

Buy Now

LX60
Cat 4 Modem
$499.00

LX60 w/Wi-Fi
Cat 4 Modem
$569

LX60
Cat M/NB Modem
$449

Recommended Accessories

Paddle Antenna
Cell
$14.00
Laird TRAB821-18503P
TRA6927M3PB-001
Cell
$70.33
Sierra Wireless 2000492
AC Power
Supply

$20.00
Paddle Antenna
Wi-Fi
$14.00
Panel Antenna
2 Cell
$48.00
Sierra Wireless 2000522
DC Power
Cable
$20.00

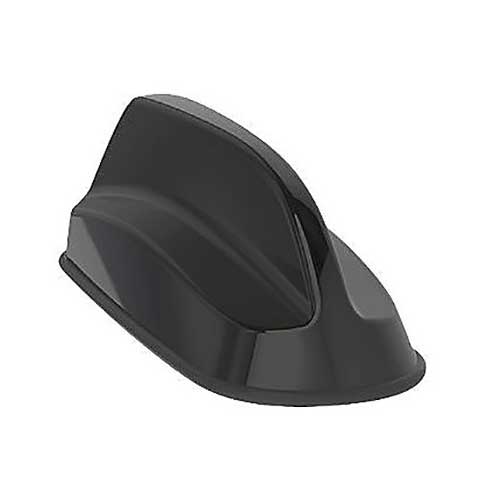

Shark Fin 4-in-1
2 Cell / 1 WiFi / 1 GPS
$265.00

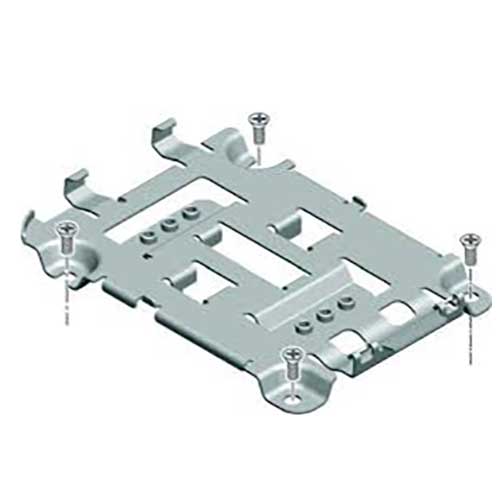

LX60 Mounting
Bracket

$20.00
