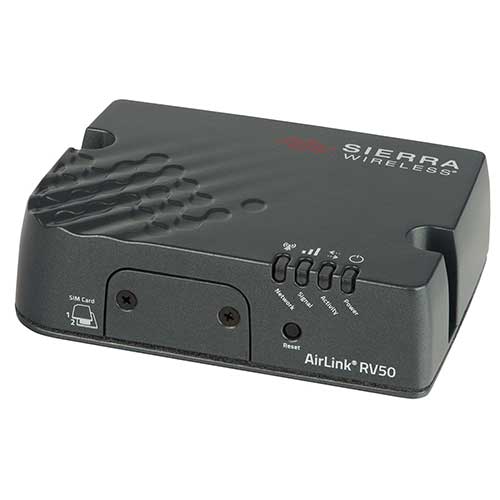

AirLink®  RV50X Industrial LTE Router

 Industrial 4G LTE Connectivity

The AirLink RV50X is the industry’s lowest power and most rugged LTE gateway. Simple to install and easy to manage, this industrial-grade gateway is designed to connect critical assets and infrastructure. Ideal for energy, utilities and smartcity applications, the RV50X provides real-time remote connectivity for SCADA, distribution management systems and metering.

The RV50X supports an extensive range of LTE bands worldwide, and its LTE-Advanced capabilities deliver up to 300 Mbps downlink speeds. For deployments in areas with limited LTE coverage, the RV50X provides fallback to 2G and 3G networks. Furthermore, the RV50X provides programmability to enable edge computing applications, using the ALEOS Application Framework (AAF).

Technology

– LTE Cat 6
– GPS/GNSS
– USB 2.0

Capabilities

– Up to 300 Mbps down/ 50 Mbps up

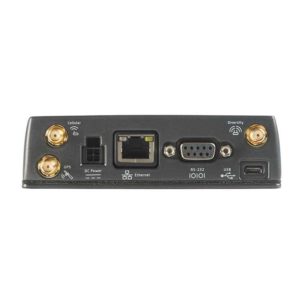

– 10/100/1000 Ethernet (RJ45)
– RS-232 serial port (DB-9)

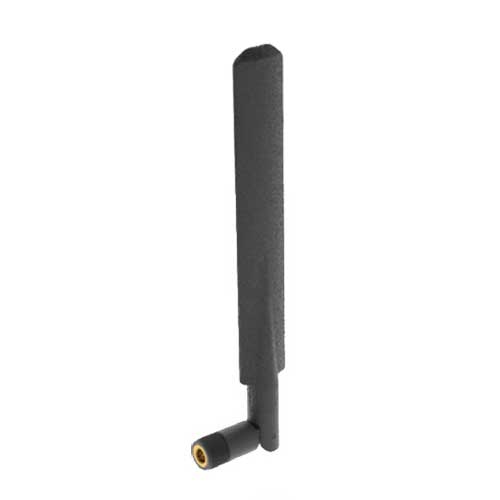

– 3 SMA antenna connectors (primary, diversity, GPS)
– Active GPS antenna support
– Configurable I/O pin on power connector
– 12 Channel GPS and GLONASS Receiver

Features

– LTE performance at 2G power consumption (less than 1W in idle mode)
– State-of-the-art LTE coverage spanning 21 LTE frequency bands worldwide
– Two product variants cover the globe
– Fully automatic network operator switching: just insert the SIM
– Provides network connectivity via Ethernet, Serial and USB
– Remote configuration, software update, and monitoring with cloud-based AirLink Management Service (ALMS) or on-premises with AirL

In the Box

– RV50X

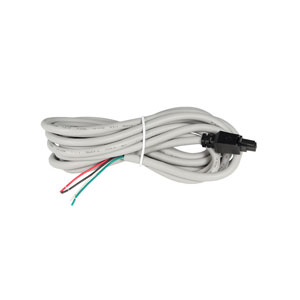

– DC Power Cable
– Quick Start Guide
